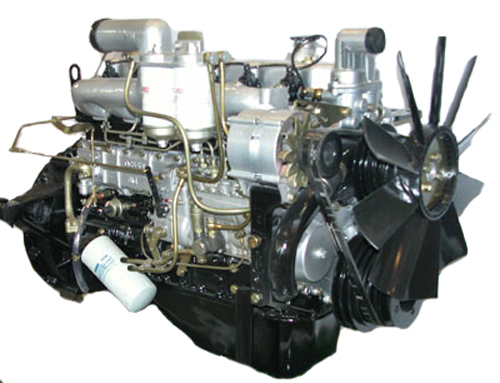

Product model ：CY6102BG
Electrical rating ：
Withstand voltage (normal) ：
work environment ：
Degree of protection ：
Product certification ：
Order onlineproduct details
Scope of application:
·Suitable for 5-7 ton forklifts, excavators, tractors and sweepers, etc.
Main technical features:
●Using
the finite element technology to carry out a comprehensive optimization
design of the main components, the whole machine is reliable in
operation, compact in structure and convenient in maintenance.
●A
new type of fuel injection pump and air intake system is adopted, and
the combustion chamber is optimally matched to improve the power and
economy of the diesel engine and reduce emissions.
●Excellent low-speed torque reserve capacity, more suitable for the use requirements of construction machinery.
●High-quality
after-sales service and adequate supply of spare parts, high degree of
generalization of spare parts, more convenient use and maintenance, and
completely solve the worries of users.
● Wide range of optional machinery, long service life, high cost performance, in a leading position in similar products.
Product parameters:
| model | 6102BG | 6102BG-A |
| Type | Vertical in-line water-cooled four-stroke | |
| Number of cylinders-bore (mm)×stroke (mm) | 6-102×118 | |
| Displacement (L) | 5.785 | |
| Valves per cylinder | 2 | |
| Oil supply method | In-line pump | |
| Intake method | inhale naturally | |
| cooling method | water cooling | |
| Emission treatment system | - | |
| Rated power kW(PS) | 80.9 (110) | 73(100) |
| Rated speed (r/min) | 2500 | 2200 |
| Maximum torque (N∙m) | 353 | 220 |
| Maximum torque speed (r/min) | 1650 | 1600 |
| Minimum fuel consumption at full load (g/kw.h) | ≤231 | ≤231 |
| Emission Standards | Country II | |
| Machine weight (kg) | 480 | |
| Dimensions (mm) | 1120×672×805 | |
